PIR produces steel-faced or aluminum kraft paper foam-filled building panels using a continuous process called Rigid-Faced Double Belt Lamination. When combined with a premium blowing agent, this process guarantees superior adhesion of PIR foam to steel panel, superior speed of production, and the prevention of air bubbles, delamination, warping, and bulging, all of which lead to superior demensional stabulity.

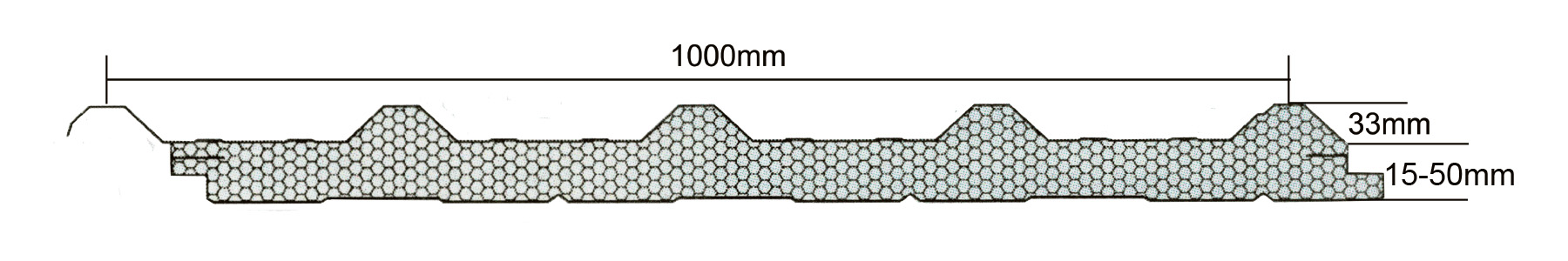

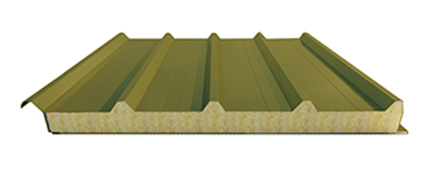

PIR trapezoid formed roof panel, through-fixed on the side-lap joints. An all arounder roof cladding suitable for use in all buildings with roof slopes as low as 3° (5.50%).
The 35mm high rib provide improved strength, sound proof smooth flow of big volume rainwater.
| Thickness of Roof Panel (mm) | Thermal Resistance |
|---|---|
| 15 | 0.83 m² / K |
| 20 | 1.11 m² / K |
| 25 | 1.39 m² / K |
| 50 | 2.78 m² / K |
PUR insulation core is the right choice for perfect thermal insulation on the wall panels of buildings.
| Thickness of Wall Panel (mm) | Thermal Resistance |
|---|---|
| 40 | 2.22 m² / K |
| 50 | 2.78 m² / K |
| 75 | 4.17 m² / K |
| 100 | 5.56 m² / K |
| 125 | 6.94 m² / K |
| 150 | 8.33 m² / K |
| 200 | 11.11 m² / K |
Fire Retardant Eco Friendly High Strength Thermal Insulation Easy InstallationB5 L10 & 21 San Simon Industrial Park Km 62 Quezon Road,
